Laboratory Microwave Sources

USB Spectrumanalyzer

Posted on January 17, 2018


Simple USB Spectrumanalyzer for 100 MHz to 6 GHz with integrated wideband PLL and Xilinx FPGA for digital Signal Processing.

Read More

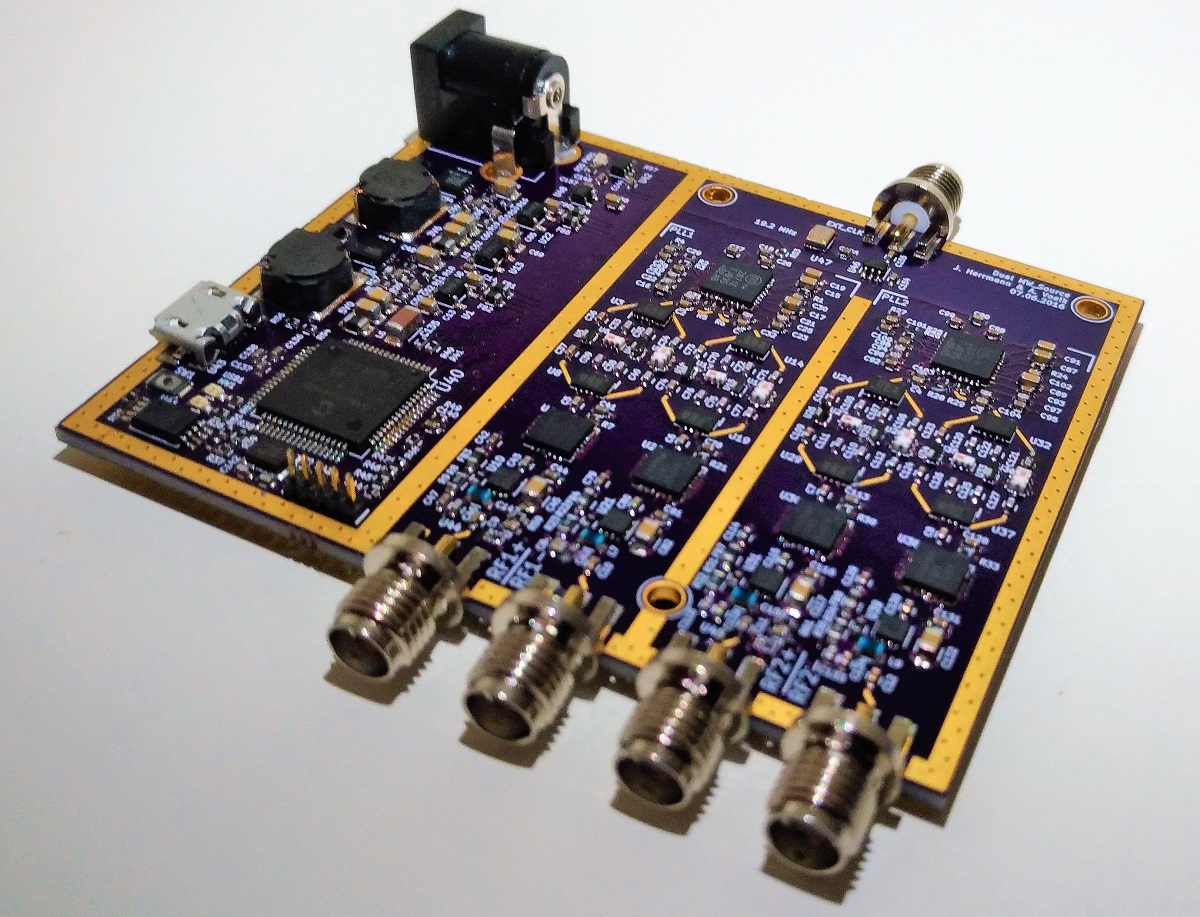

Dual Microwave Source V2

Posted on July 09, 2017

Dual V2 Rev

Layout revision of the Dual Source, new microprocessor and additional external clock input for source synchronization. RF-shielding and design of an aluminium case.

Read More

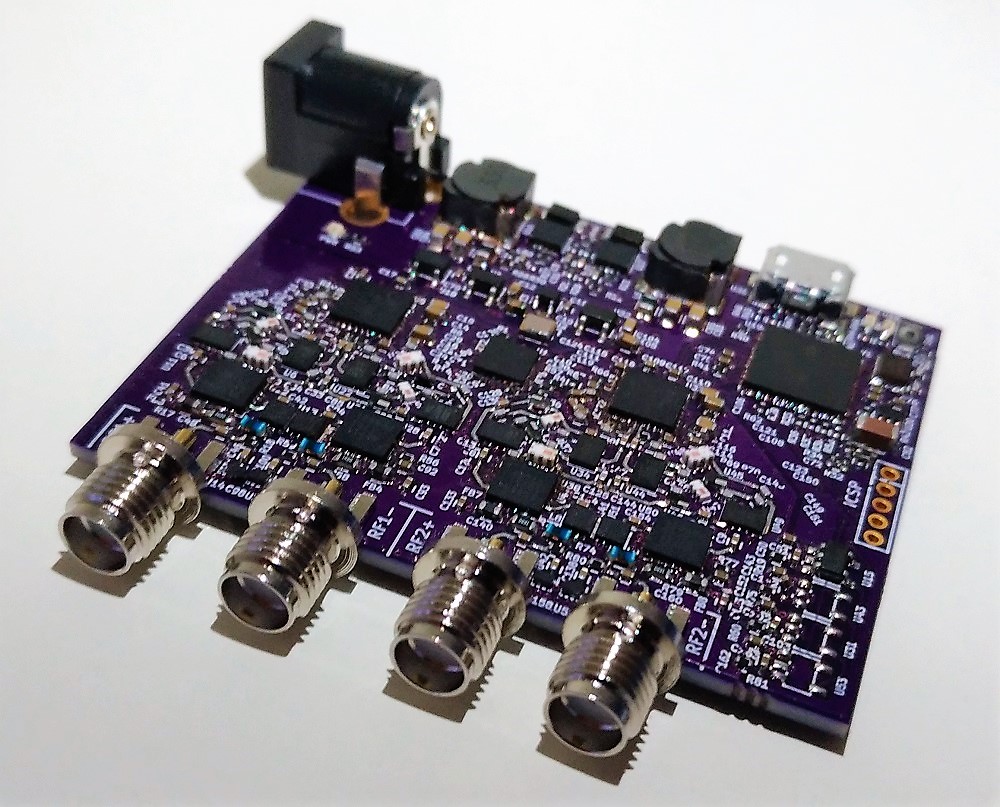

Dual Microwave Source

Posted on April 28, 2017

Dual Source

This versions features two synced sources with programmable phase shift (0.01° resolution) and additional differential output. Each source also can be programmed independent to frequency and amplitude. Perfectly suitable for pulsed magnetic resonance experiments. Frequency range is 100 MHz to 6 GHz.

Read More

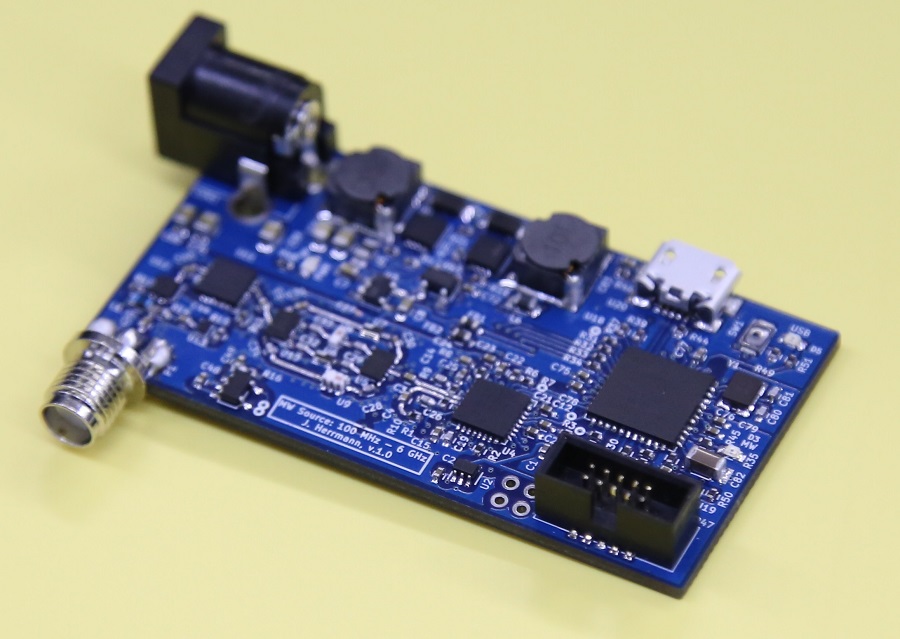

Single Microwave Source

Posted on April 26, 2017

Single Source

A simple low-cost programmable microwave source for signals from 100 MHz to 6 GHz. Output power is adjustable from -35 to 10 dBm and a on board calibration is possible by using a microwave power detector. Easy PC communication over the USB port.

Read More

Website Search


This webpage reports on the design of a low-cost programmable microwave sources with adjustable phase and power output. The circuits can provide microwave signals within the frequency range of 100 MHz to 6 GHz. The total output power is adjustable from -35 dBm to +10 dBm. Two 50 Ω SMA outputs provide signals with a programmable phase shift from 0° to 360°. Additionally, the 180° shifted signals are available from two extra SMA outputs. This makes the device perfectly suitable for multiple pulse sensing applications.
